The Gigaspire

TAKING WIFI PERFORMANCE AND CONTROL TO THE NEXT LEVEL

The Gigaspire is a next-generation WiFi system. Leveraging the latest advancements in WiFi technology, including WiFi 6 (also known as the 802.11ax WiFi standard), it combines blazing-fast speeds with whole-home coverage to give you an unrivaled online experience. Whether you’re streaming HD video on multiple devices simultaneously, uploading a big presentation for work, or gaming online with friends, the Gigaspire has got you covered.


Blazing Speeds And Whole-Home Coverage

With Gigabit WiFi speeds, the Gigaspire provides more than enough bandwidth for everyone in your household. And no matter how many devices are connected at the same time, everyone enjoys the same outstanding WiFi performance. Based on WiFi 6, the Gigaspire provides a 3,000' range, higher efficiency, and is less affected by interference from other nearby WiFi gateways. The Gigaspire has a Gigabit Ethernet port so you can also connect a variety of wired multimedia devices for rapid data sharing across your network.



  •  Cutting Edge
  • Experience a growing selection of applications powered by a flexible operating system, enhancing everything about your connected life from parental controls to the latest in network security and more.


  •  Broad Coverage
  • Market leading 3,000 foot range with WiFi 6. Experience the same great WiFi quality everywhere you roam in your home.


  •  Secure
  • Automatic software updates provide improved security to ensure that you’re getting the most from your Internet service.


  •  Lightning Fast

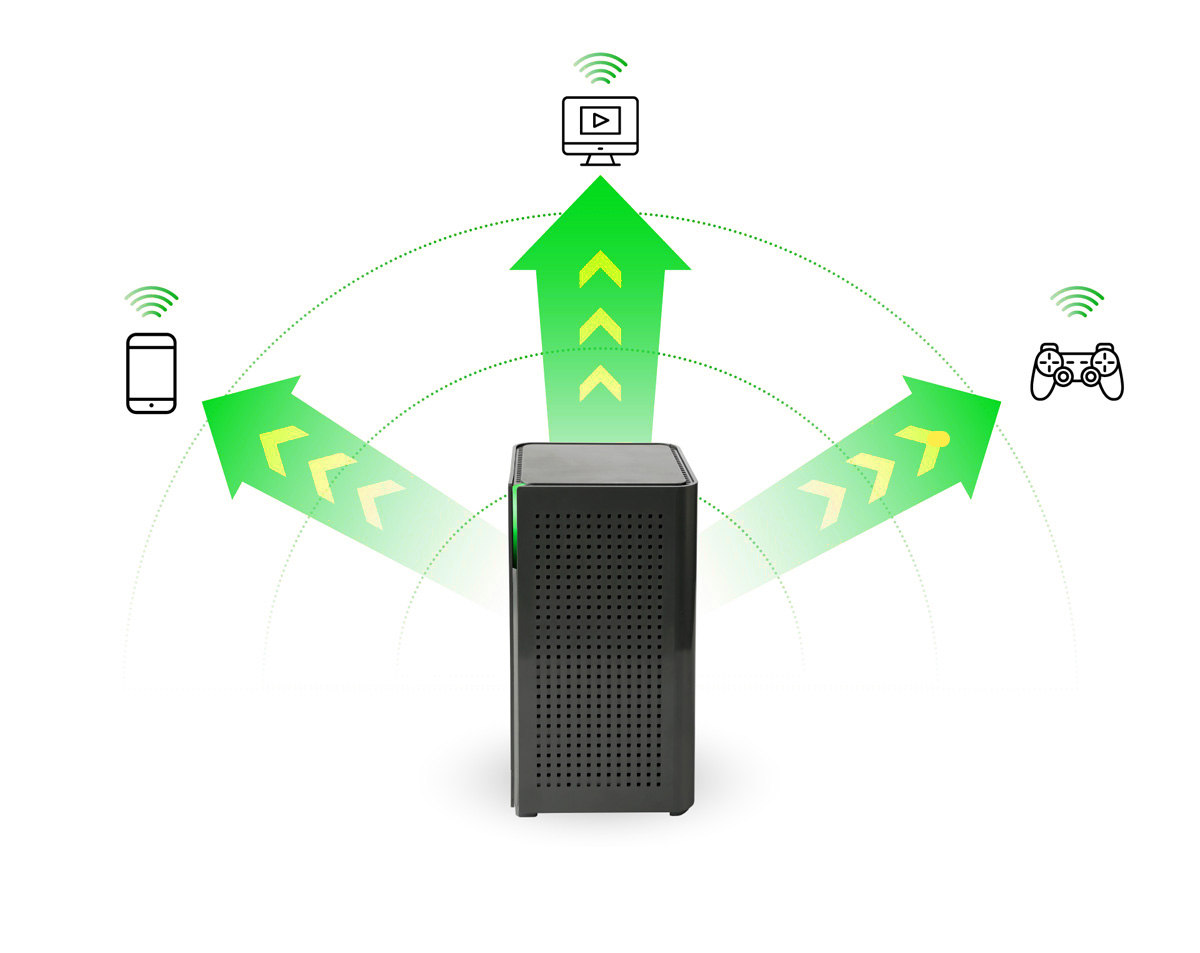

  • No lag and no downtime with Multi-user, Multi-input, Multi-output (MU-MIMO tech) with 8 streams of data simultaneously.



  •  High Performance
  • With Dual-band WiFi 6 (802.11ax) you can experience the most advanced WiFi bandwidth everywhere in your home.


  •  Flexible
  • “Plug & Play” friendly with easy Mesh units. Chances are you won’t need them, but the latest in Mesh technology extends the highest performing WiFi to every part of your home, no matter how big.


SPECIFICATIONS

DIMENSIONS
Width: 4.75 in
Height: 8.5 in
Depth: 4.75 in
Weight: 36 oz.

WAN INTERFACE
Interface: One Gigabit-Ethernet Port, RJ-45 connector

INTERFACES
Wireless: 2.4 GHz 2x2 and 5 GHz 4x4 internal antennas
Data/IPTV: Four 10/100/1000 BASE-T Ethernet ports, RJ-45 connectors
USB: USB 3.0 Type A
Power: 2-pin barrel connector

WIRELESS
  • 2.4 GHz 802.11 b/g/n/ac/ax
  • 5 GHz 802.11 a/n/ac/ax
  • 2.4 GHz and 5 GHz simultaneous
  • 8 SSIDs per band (2 SSID subscriber default)
  • Auto channel selecting and interference detection
  • WPS, WPS push button
  • Wireless Security: WiFi protected access (WPA/WPA2) WEP, MAC address filtering
  • WiFi multimedia (WMM)
  • Supports up to 250 wireless clients

DATA
  • Drop length: 328 feet (100 m) maximum using CAT5 cable
  • Auto MDI/MDIX crossover for 1000BASE-TX, 100BASE-TX, and 10BASE-T ports
  • Traffic Management and QoS: 802.11Q VLAN; 802.11p voice, video, data and management priorities; Q-in-Q tagging;

Gigaspire included with Advanced WiFi

If you need additional help with any technical issues, we’ve got you covered with sophisticated remote monitoring and diagnostics that help us identify and resolve any problems you may be experiencing quickly – and, in most cases, without having to send a technician to your home. Our local Idaho customer support representatives can see which of your devices are connected, which ones are having issues and help you troubleshoot and solve the problem quickly.
